Technical innovation is what makes Formula 1 so different from any other form of racing. The on track action is as much played out by the engineers and aerodynamicists as it is the drivers. We are here to admire, study, and discuss this beauty that exists on the ragged edge of what we think is possible, or at least what we thought was possible.

Advertisement

Discussions and questions are welcomed and encouraged in the comments section below. I try not to repeat thing’s I’ve pointed out previously, but if you’d like to discuss something then go for it!


Mercedes W08

“Mercedes #TechF1 details. #BahrainGP #F1" @PiusGasso
“Mercedes #TechF1 details. #BahrainGP #F1" @PiusGasso
Advertisement

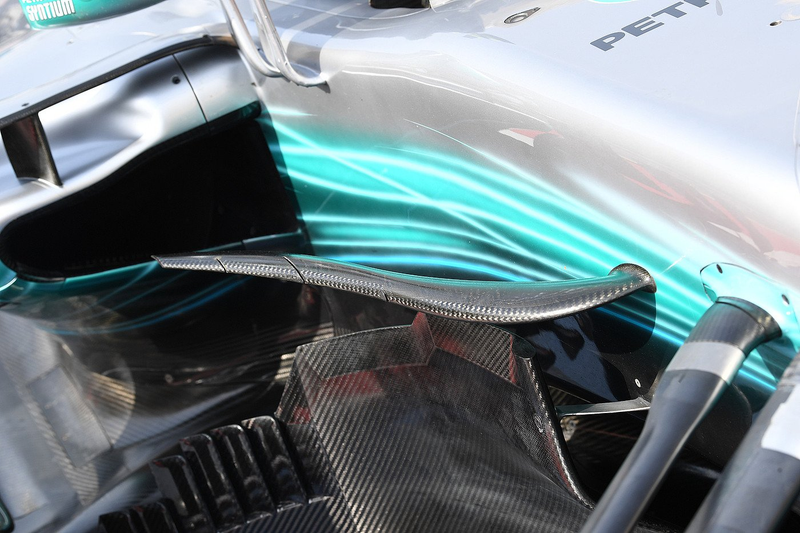

I haven’t noticed the cuts in the W08's curvy strake before...

Bahrain | F1.com
Bahrain | F1.com
Advertisement

Mercedes more subtle version of their combine harvester compared with the previous year’s W07.

Bahrain | F1.com
Bahrain | F1.com
Advertisement

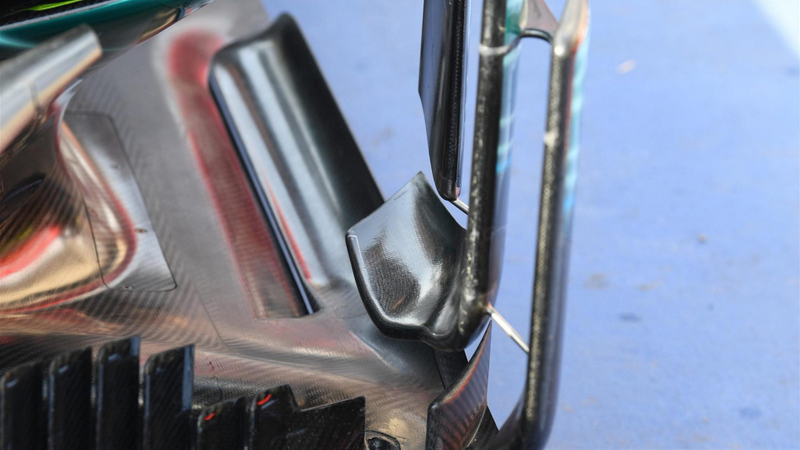

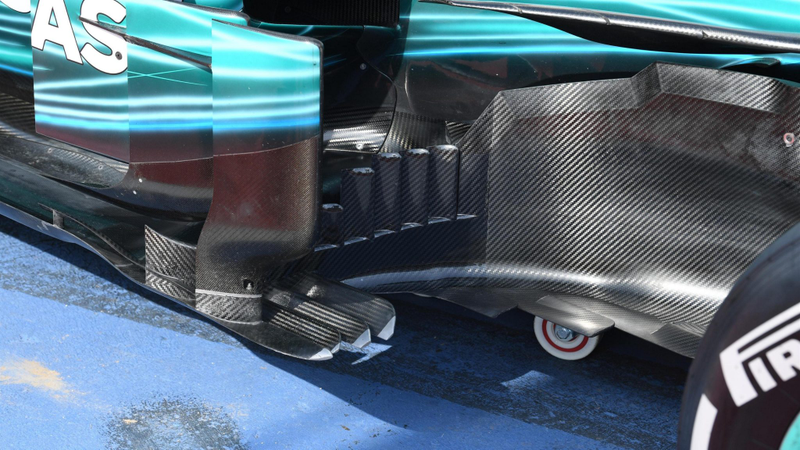

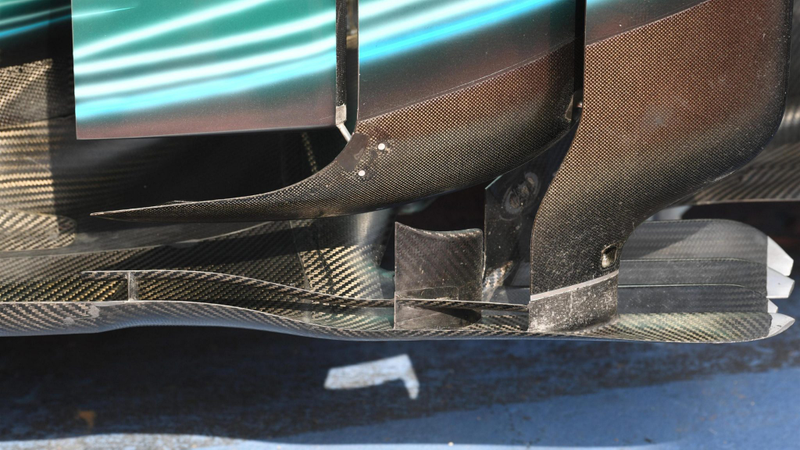

W08 bargeboard detail.

Bahrain | F1.com
Bahrain | F1.com
Advertisement

W08 bargeboard detail.

Shanghai | F1.com
Shanghai | F1.com
Advertisement

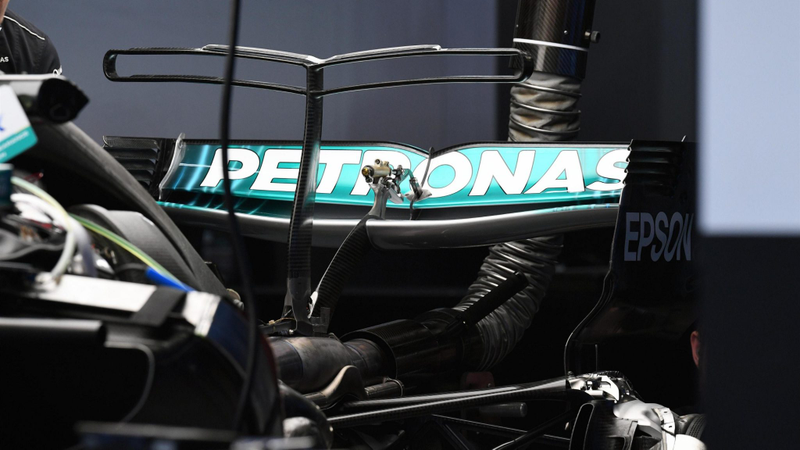

Exposed DRS actuator and 3-element T-wing.

“Mercedes está rodando estos dos días  de test sin los dos escapes de la wasteGate… Me pregunto qué buscarán y donde los llevarán…” @PiusGasso
“Mercedes está rodando estos dos días de test sin los dos escapes de la wasteGate… Me pregunto qué buscarán y donde los llevarán…” @PiusGasso
Advertisement

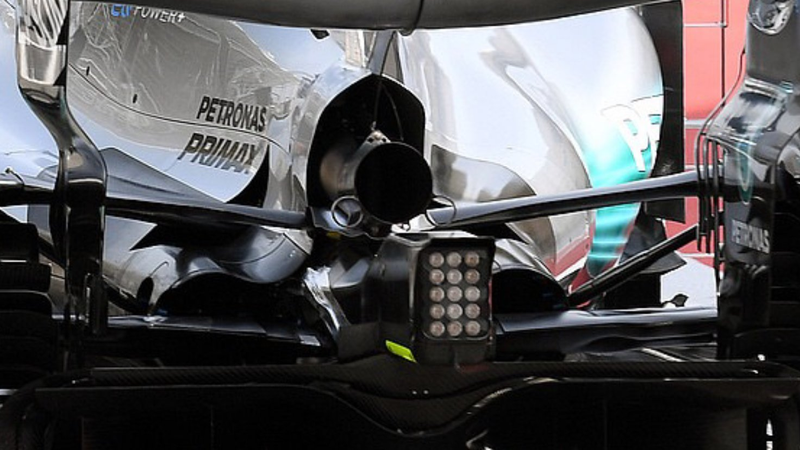

Mercedes running without wastegates in the Bahrain in-season test; wether those two rings count per the regulations, I do not know...

Also looks like they’ve implemented a centerline rear wing support that passes through the exhaust outlet.

Advertisement

Ferrari SF70H

“Ferrari #TechF1 details. #BahrainGP #F1" @PiusGasso
“Ferrari #TechF1 details. #BahrainGP #F1" @PiusGasso
Advertisement

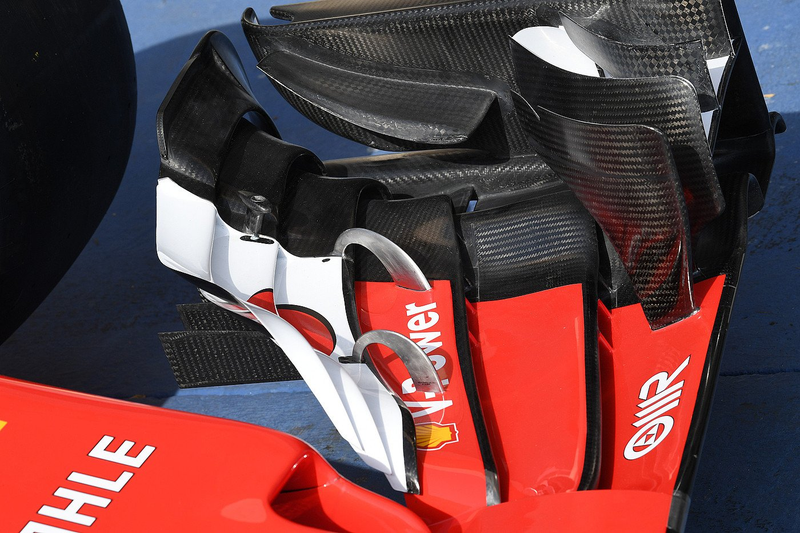

New front wing on the Ferrari with the mainplane split in two, now 6 elements total.

Shanghai | F1.com
Shanghai | F1.com
Advertisement

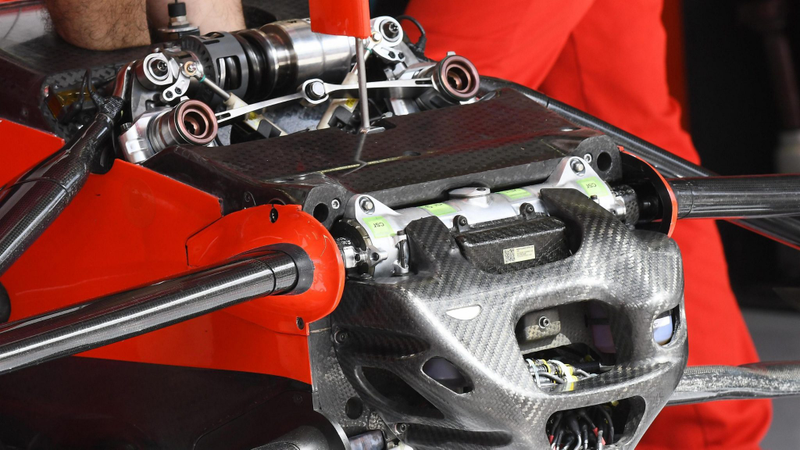

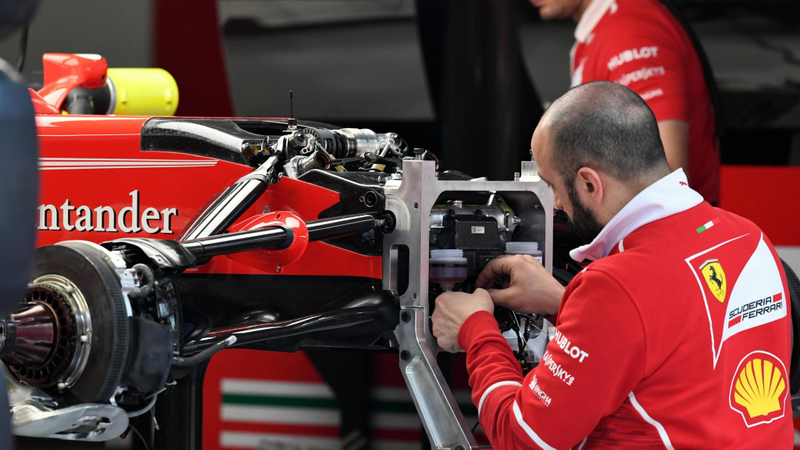

A thanks should be given to the lower nose regulations and vanity covers for raising the font suspension damper element above the chassis so the engineers don’t have to squeeze their hands through those carbon cutouts anymore.

Bahrain | F1.com
Bahrain | F1.com
Advertisement

Everybody’s on the hydraulic heave damper train (save for Red Bull).

Bahrain | F1.com
Bahrain | F1.com
Advertisement

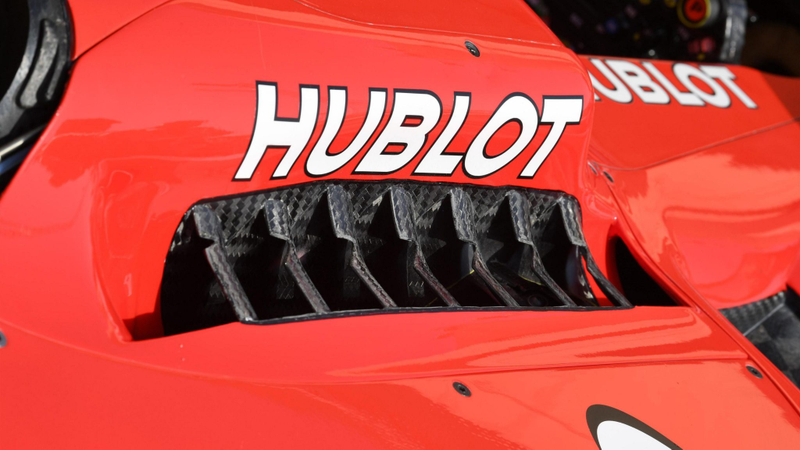

Larger cooling outlets for the Bahrain heat.

“Ferrari #TechF1 details. #BahrainGP #F1" @PiusGasso
“Ferrari #TechF1 details. #BahrainGP #F1" @PiusGasso
Advertisement

Note the simple wing after the air channeled by the bargeboards reaches the outside of the chassis.

Bahrain | F1.com
Bahrain | F1.com
Advertisement

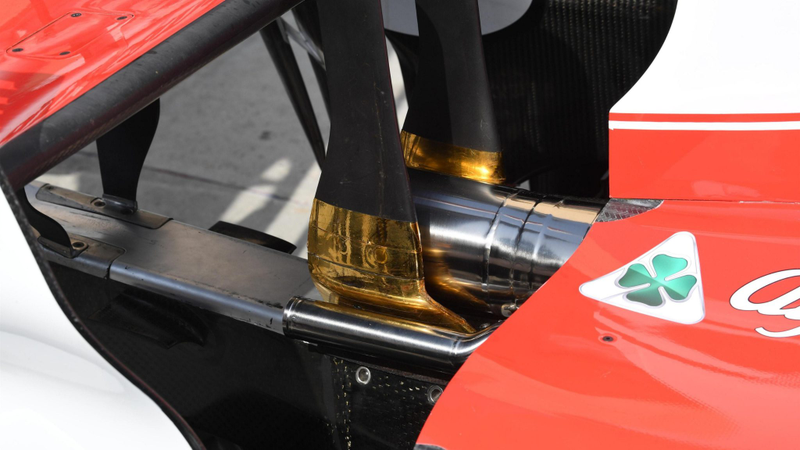

heat-reflective gold coating on the SF70H’s centerline rear wing supports.

“Ferrari #TechF1 details. #BahrainGP #F1" @PiusGasso
“Ferrari #TechF1 details. #BahrainGP #F1" @PiusGasso
Advertisement

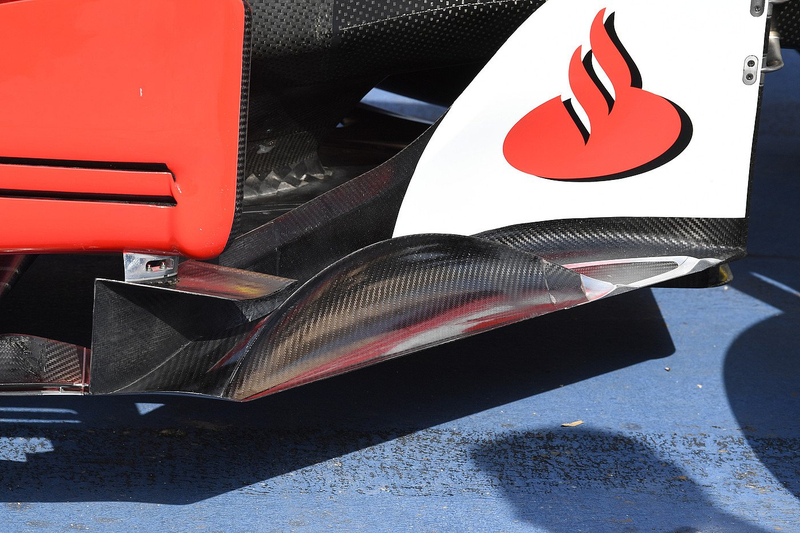

Watch the Ferrari’s floor as the next few races pass. There’s some trickery going on, but I haven’t heard exactly what they’re doing; perhaps flexing.

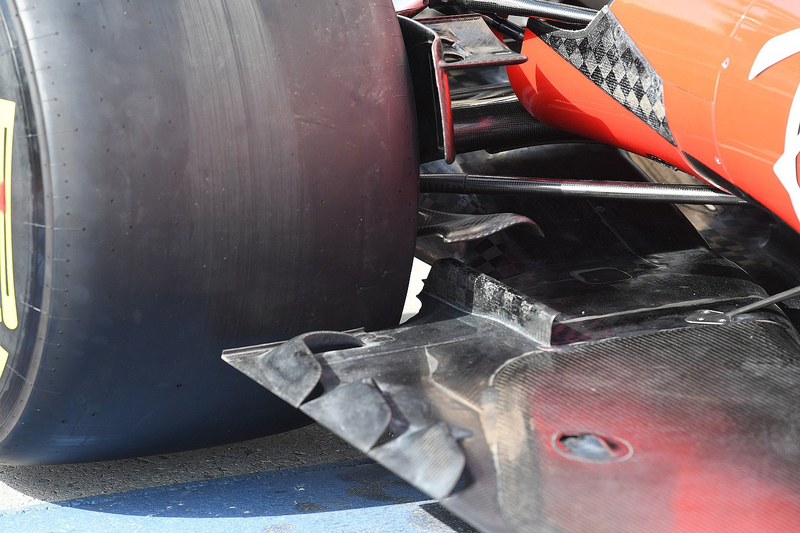

Anyways, this is quite an interesting shot. Note the (tiny) upright strake of carbon on the trailing edge of the floor preceding the tire, the curvaceous winglet at the bottom of the brake duct, and vented winglet at the top of the brake duct with accompanying gurney flap.

Advertisement

Red Bull RB13

Bahrain | F1.com
Bahrain | F1.com
Advertisement

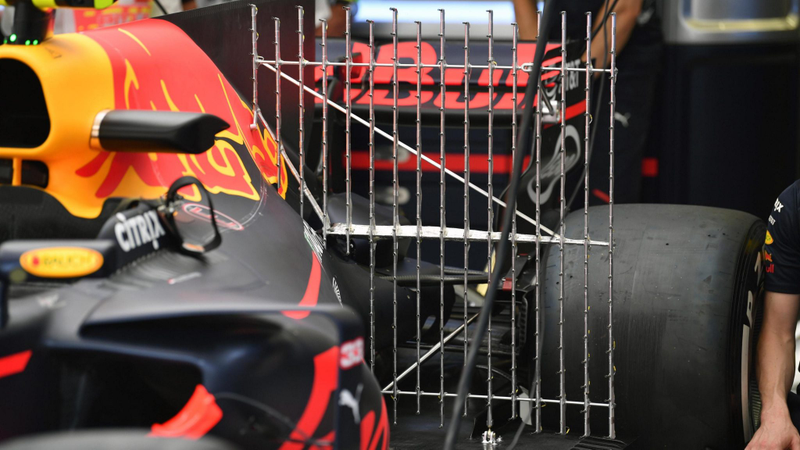

Ready to go!


Force India VJM10

Bahrain | F1.com
Bahrain | F1.com
Advertisement

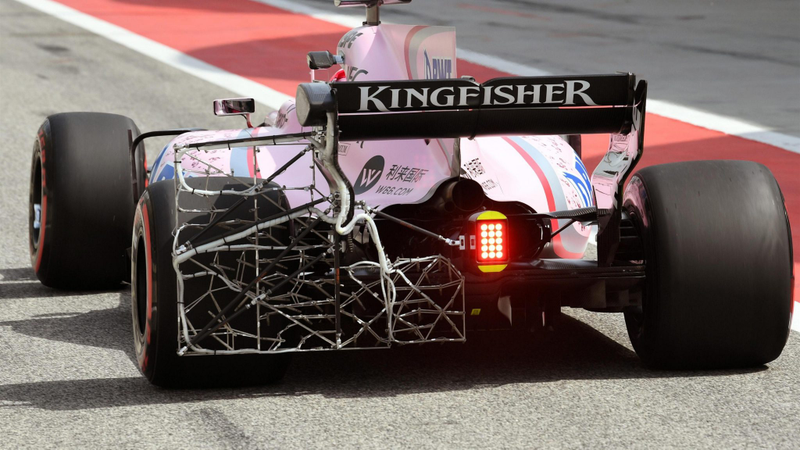

Angled pitot tubes to correctly measure the airflow in the direction it’s approaching the array (if their data is correct...).

“Nuevo bargeboard del Force India. Ahora tiene 10 cortes verticales” @AlbertFabrega
“Nuevo bargeboard del Force India. Ahora tiene 10 cortes verticales” @AlbertFabrega
Advertisement

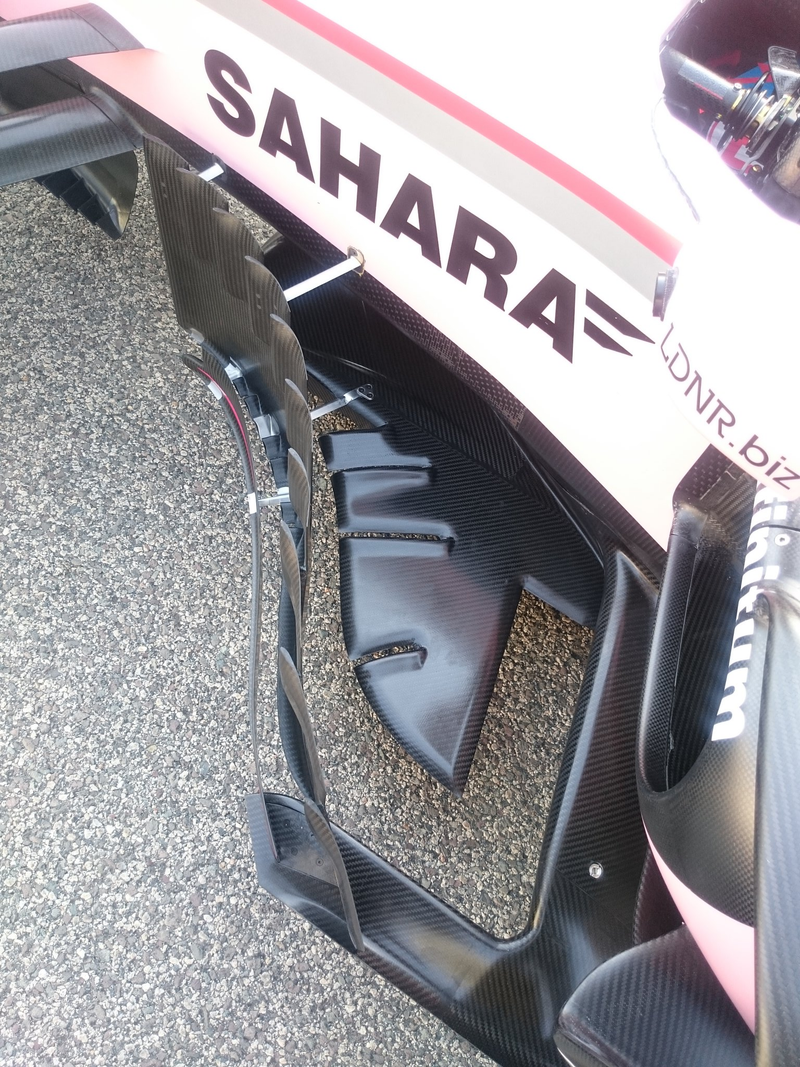

New 10-element slotted bargeboards on the Force India.

“Force India también tiene nuevos turning vanes, ahora divididos en 12 elementos, estilo Mercedes.” @AlbertFabrega
“Force India también tiene nuevos turning vanes, ahora divididos en 12 elementos, estilo Mercedes.” @AlbertFabrega
Advertisement

...and 12-element slotted turning vanes. I’m just translating Albert’s tweet, aren’t I?

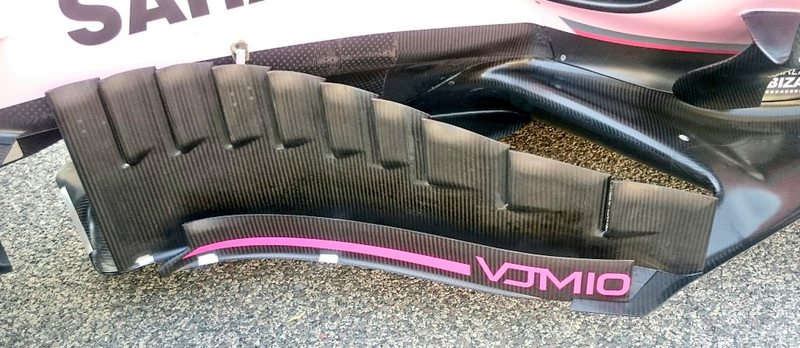

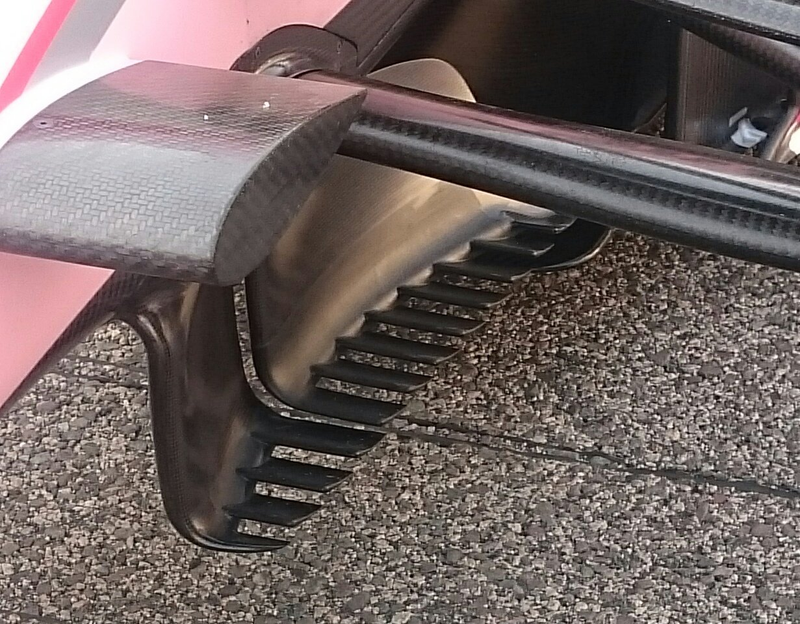

“Nuevos cortes también en la extensión del spliter (bandeja del té) del Force India. Notoria evolución del FIndia” @AlbertFabrega
“Nuevos cortes también en la extensión del spliter (bandeja del té) del Force India. Notoria evolución del FIndia” @AlbertFabrega
Advertisement

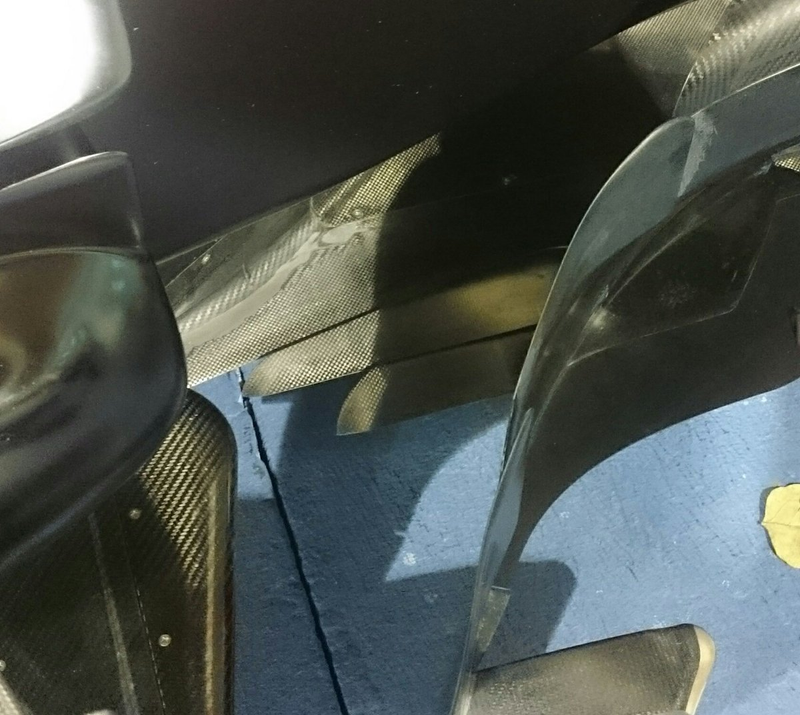

“También nuevos direccionadores d flujo para el Force India q  ahora terminan en medio del pontón. Además tienen deflector vertical invertido” @AlbertFabrega
“También nuevos direccionadores d flujo para el Force India q ahora terminan en medio del pontón. Además tienen deflector vertical invertido” @AlbertFabrega

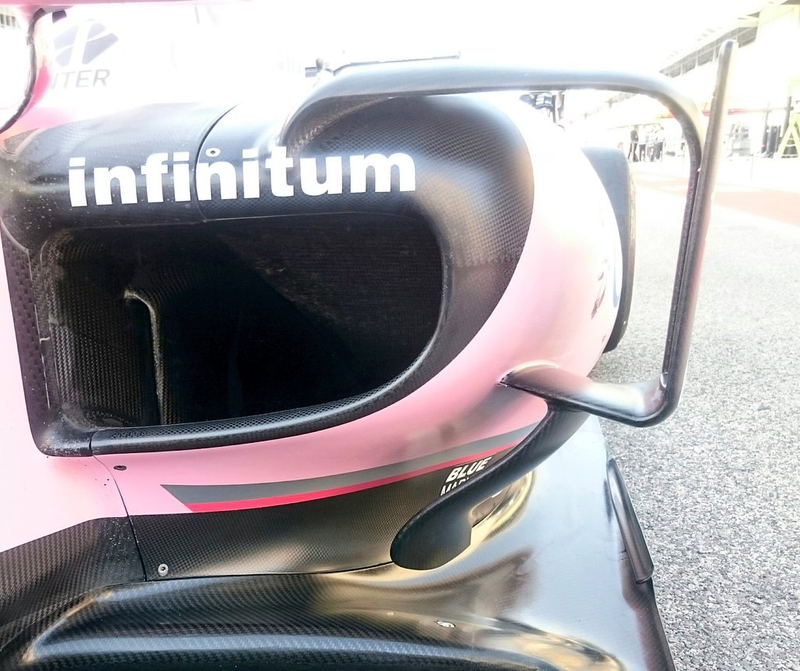

The right side obviously feeds the radiator that you can see, while the left channel of the sidepod inlet may goes to cool something else; remember Force India shares the Mercedes three-openings airbox inlet concept, as they share the same engine, so they don’t utilize their sidepods for cooling anything in a similar fashion to the Ferrari, which is ducted like crazy.

Advertisement

Toro Rosso STR12

Bahrain | F1.com
Bahrain | F1.com
Advertisement

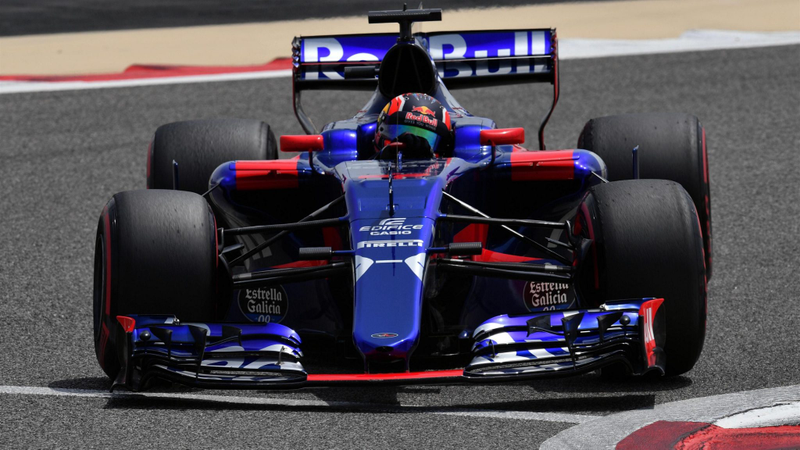

Tiny cuts in the front wing’s Y250 section. This shot also shows the upper wishbone’s arm attachment to the front wheel uprights, and idea Toro Rosso shares with Mercedes.

Illustration for article titled Technically Formula 1 - China  Bahrain
Advertisement

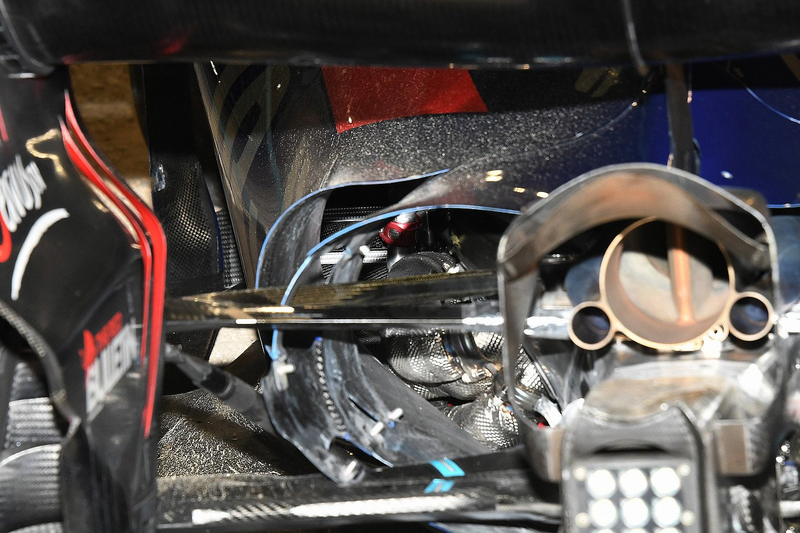

You can see here the exhaust flow conditioner that is also the centerline rear wing support inside the exhaust pipe.


McLaren MCL32

Shanghai | “McLaren test new t-wing during practice in Shanghai   #ChineseGP #F1" @SuttonImages
Shanghai | “McLaren test new t-wing during practice in Shanghai #ChineseGP #F1" @SuttonImages
Advertisement

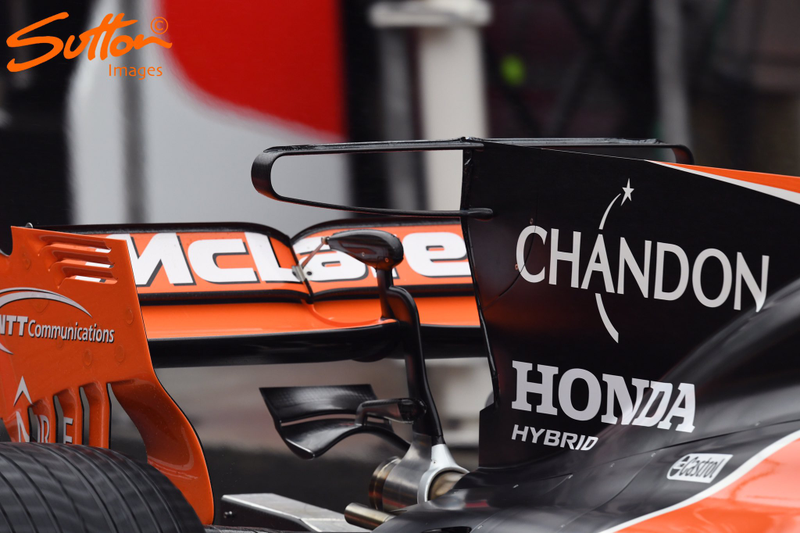

Coat hanger T-wing.

“Detalles d los generadores d vórtices en la extensión lateral de la bandeja del te del McLaren.” @AlbertFabrega
“Detalles d los generadores d vórtices en la extensión lateral de la bandeja del te del McLaren.” @AlbertFabrega
Advertisement

Some horizontal strakes underneath the McLaren chassis that look awfully like the Mercedes International Harvester.


Renault RS17

Bahrain | F1.com
Bahrain | F1.com
Advertisement

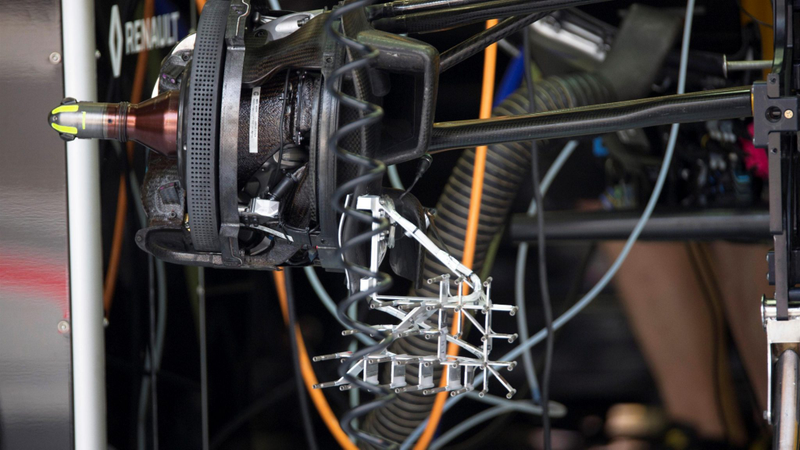

Setting up some front wing aero correlation tests on the Renault.

Bahrain | “#F1: New #Renault R.S.17 blown axle. #AMuS, #BahrainTest” @andihaupt1
Bahrain | “#F1: New #Renault R.S.17 blown axle. #AMuS, #BahrainTest@andihaupt1
Advertisement

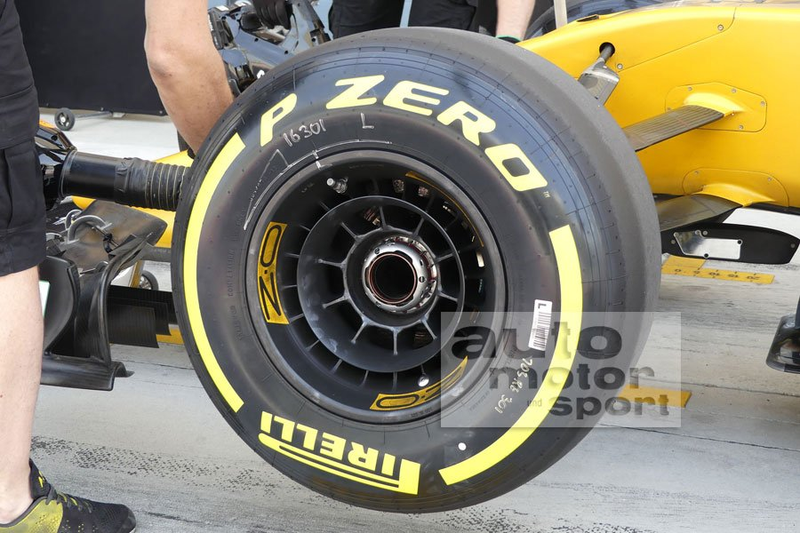

Renault testing a blown front axle during the Bahrain in-season test.


Sauber C36

Shanghai | “Nuevo direccionador d flujo en el chasis del Sauber #GPChina” @AlbertFabrega
Shanghai | “Nuevo direccionador d flujo en el chasis del Sauber #GPChina@AlbertFabrega
Advertisement

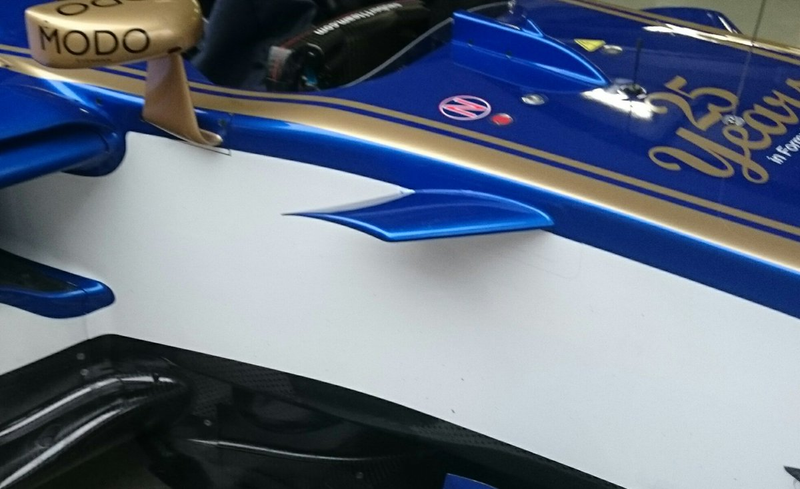

Sauber joining the gang of cars with winglets attached to the side of the chassis to guide the clean air flowing over the front suspension down into the sidepod inlets.

“#F1: some small jags on bargeboard of #Sauber C36.” @AlbertFabrega
#F1: some small jags on bargeboard of #Sauber C36.” @AlbertFabrega
Advertisement

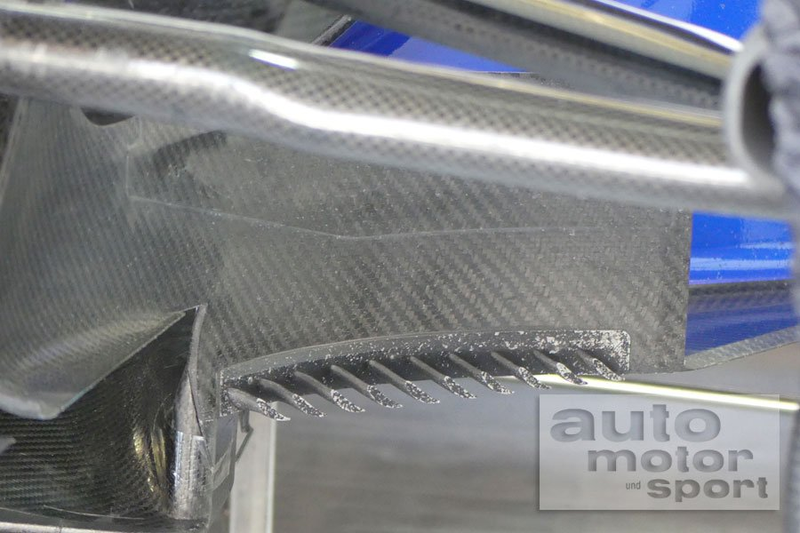

Downwards-guiding array of winglets on the C36's bargeboard.
